MAX 2000W 5 In 1 Handheld Laser Welding Machine For Aluminum Metal Welding Laser Machine
I. Product presentation

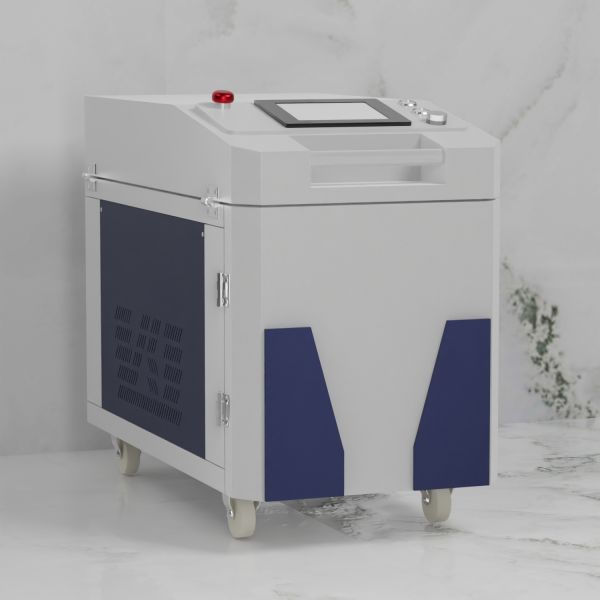

1) Equipment appearance
2) Main component
①laser resource:
Brand: MAX
Mode: MFSC-2000
laser parameter:
| laser power | 2000W |
| laser wavelength | 1080±10nm |
| output fiber core diameter | 20μm,25μm,50μm |
| cable length | 12M or customized |
| beam delivery | QBH or customized |
| guide beam | RED |
| operation mode | continuous or modulation |
| polarization | random |
| power stability | ＜±1.5%(2h) |
| power adjustment scope | 10%-100% |
| Max.modulation frequency | 5kHz |
②water chiller
Brand: Quanguan
Mode: built-in water chiller
Note: Select the corresponding specifications according to the laser power, the cooling water is pure water or distilled water, the cooling water is replaced once every 3 months at the latest, and the chiller filter is cleaned at least once a month.
③laser welding gun
Brand: Relfa
Function: 5 in 1 multifunctional laser gun
Model: FWH30
Detailed structure picture:
II. Key advantage of 5 in 1 laser welding machine
1. High power and stable output, strong welding ability of thick plate
- 2000W high power: can easily weld stainless steel (8mm), carbon steel (6mm), aluminum alloy (5mm) and other materials to meet the needs of industrial-grade thick plates.
- MAX Mopa laser resource: adjustable pulse width (20-500ns), adapting to different materials (e.g. copper and other high anti-materials welding is more stable).
2. Integrated water-cooling design, continuous operation without worries
- Dual-channel water-cooling system: laser head and fiber QBH are independently cooled to avoid high-temperature power reduction (air-cooled models may overheat after 30 minutes of continuous welding).
- Industrial grade water pump: noise <55dB, suitable for long time use in workshop.
3. Operational flexibility and high labor replacement
- Handheld design: weight ≤ 2kg, 360° flexible welding of complex structures (e.g. pipes, curved parts).
- No edge grinding / no welding wire: laser deep fusion welding direct molding, reducing post-processing procedures.
4.application scenario
| industry | appliance | effect |
| Sheet metal processing | Stainless steel water tank, cabinet welding | Flat weld seams, no grinding required |
| automobile manufacturing | Aluminum battery tray, exhaust pipe repair | No deformation, high strength |
| Hardware tools | Tool and hinge welding | High precision and small heat affected zone |
| Mold Repair | Repair of cracks in steel molds | Controlled melt depth to avoid substrate damage |
III.operational readiness

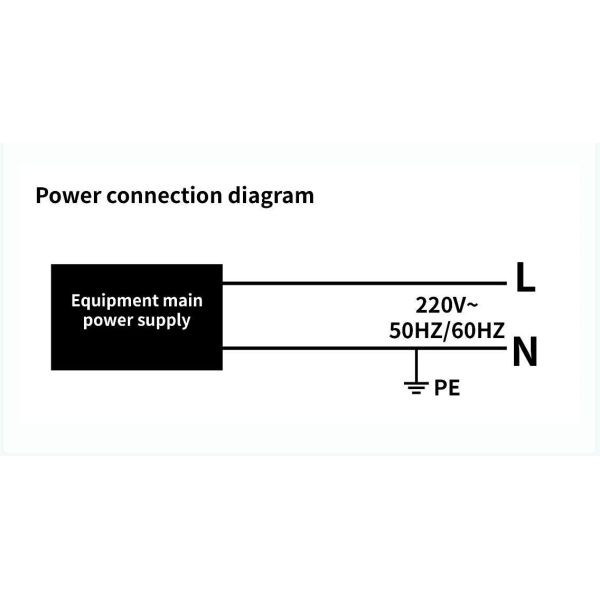

1. power line
the 2000W continuous welding machine has three main power supplies, which are L, N, and PE. "L" represents the live line, "N" represents the neutral line, and "PE" represents the ground line. The overall power of the equipment is about 10KW, and the operating voltage is 220V 50/60hz. |  |

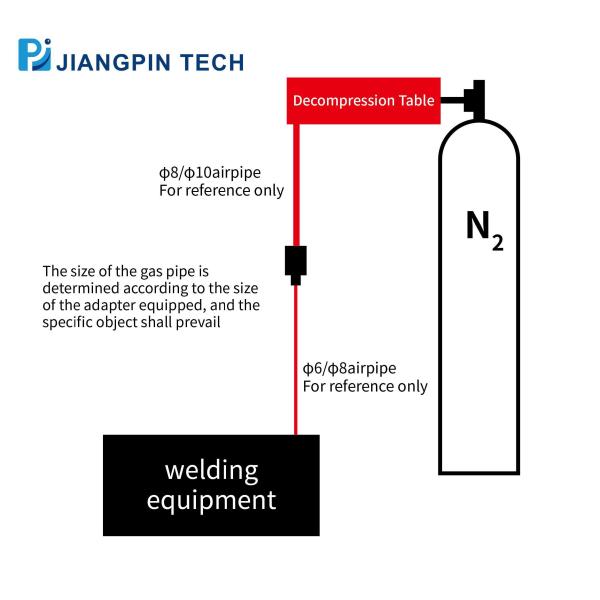

2. Protective gas path
| In welding operations, the use of protective gas can well protect the optical lens inside the gun head to prevent dust from entering the gun body and causing the lens to burn. Usually, we can use nitrogen and argon as the protective gas during welding operations, and the pressure range is between 0.4 and 0.6Mpa |  |
3. cooling water
The laser used in our equipment is a water-cooled laser, so we need to add
cooling water in the chiller before power, the first injection amount needs to be
above the green level line, and the water level will drop after the equipment is
powered on, so please pay attention to the level line and add cooling water in time.
Note: Only when the water temperature displayed on the chiller panel reaches the set range, the equipment can perform light operation. The temperature ranges from 25 to 28 ° C in summer and 20 to 22 ° C in winter. |  |
